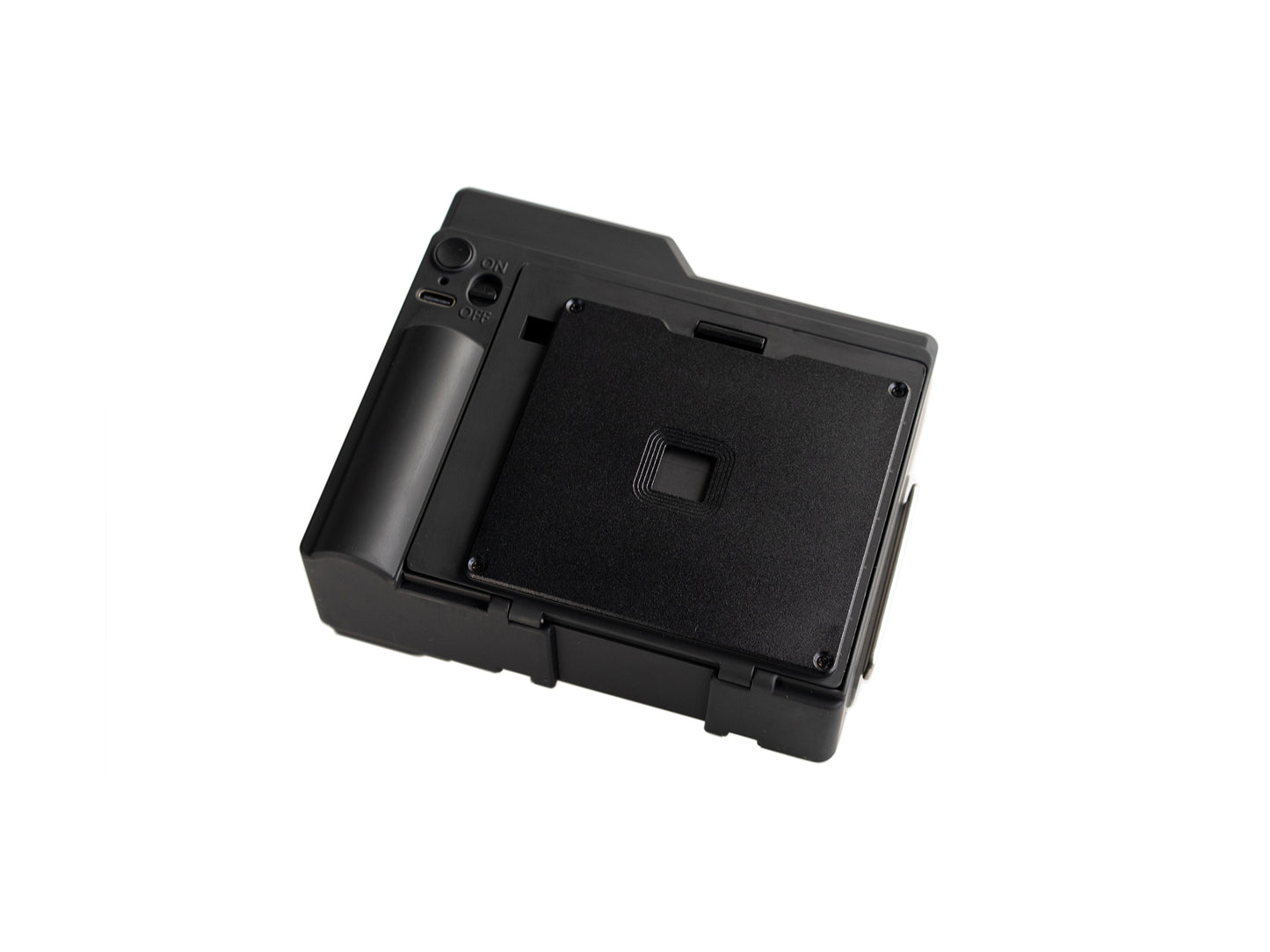

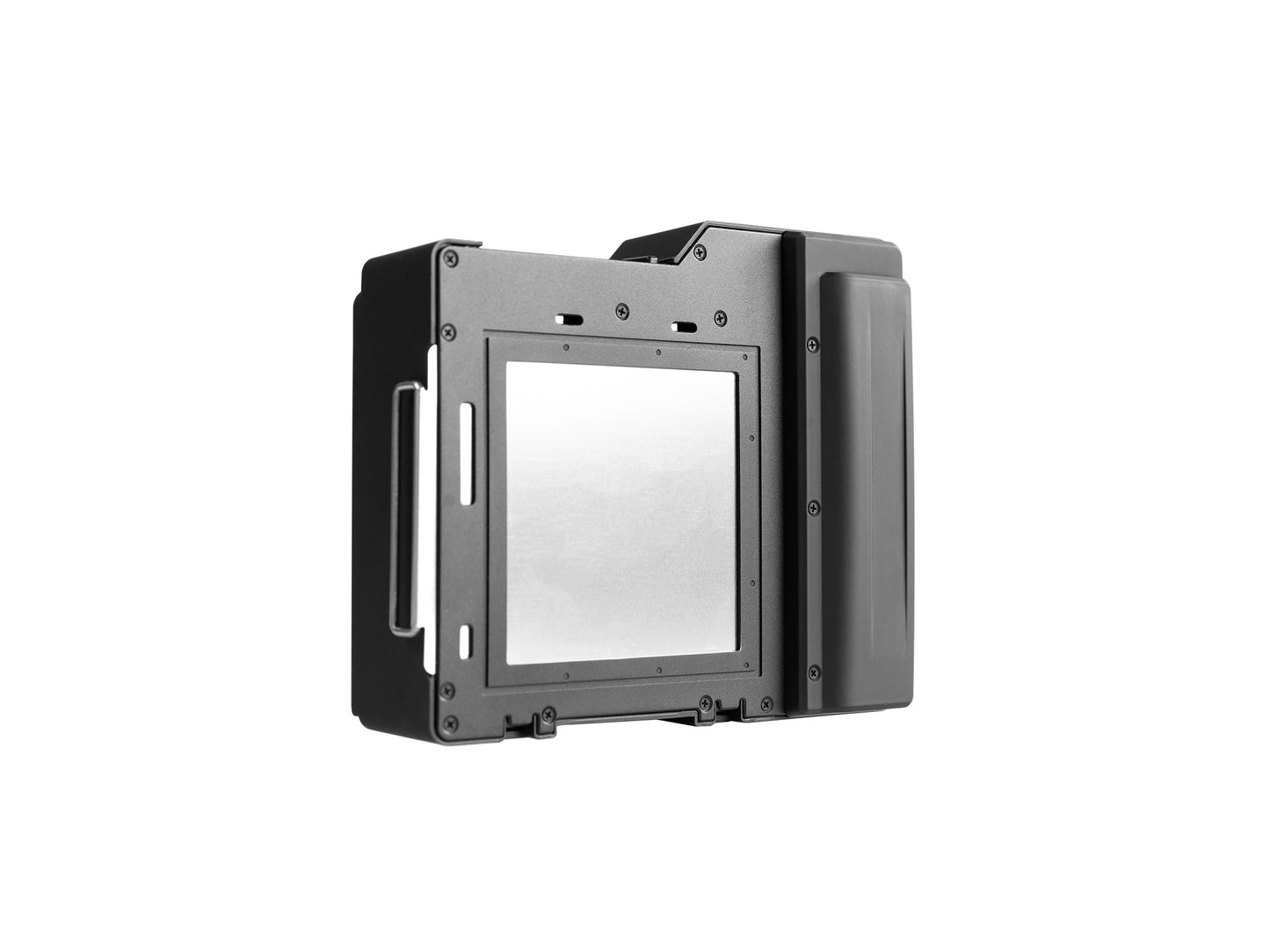

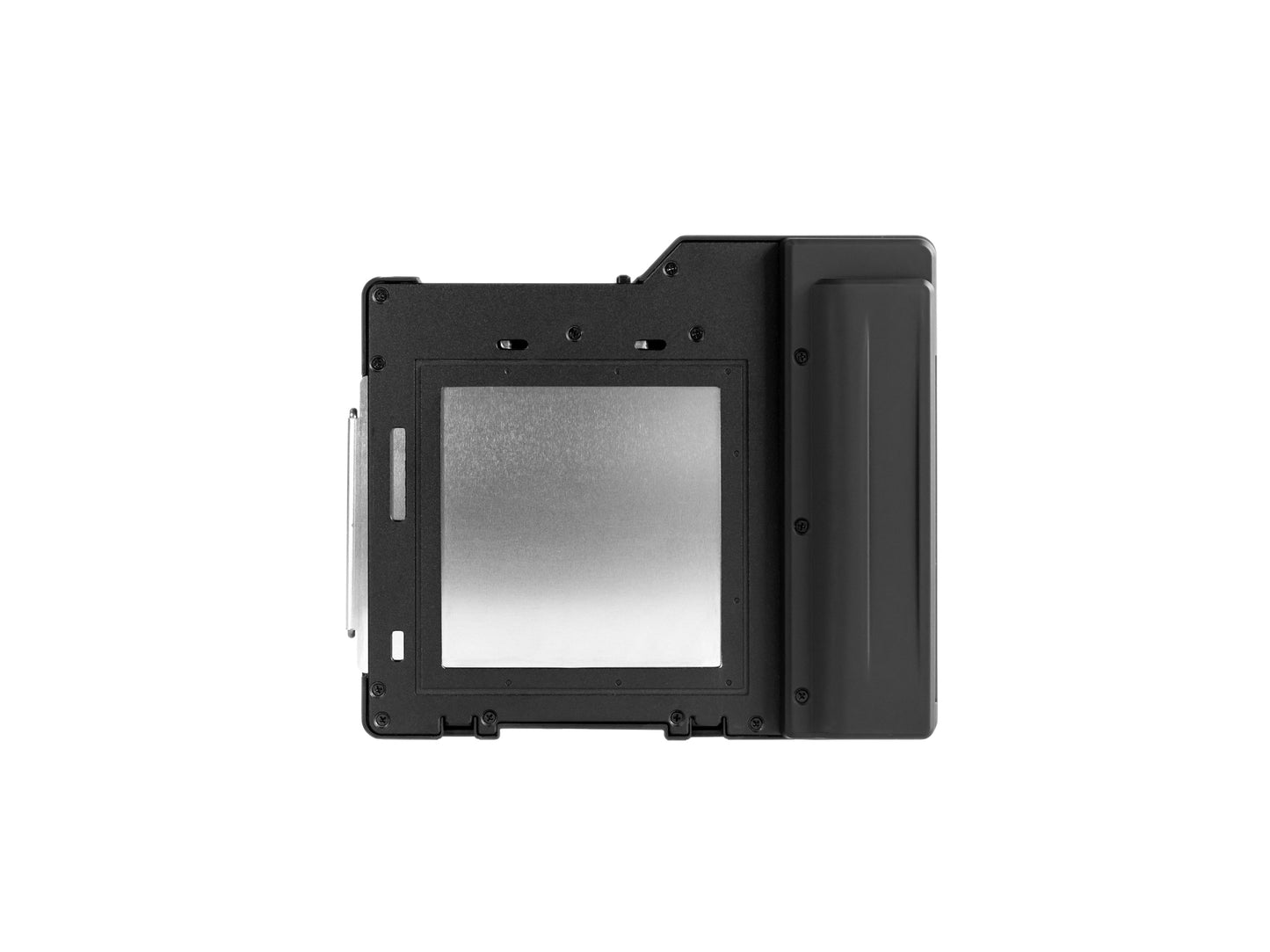

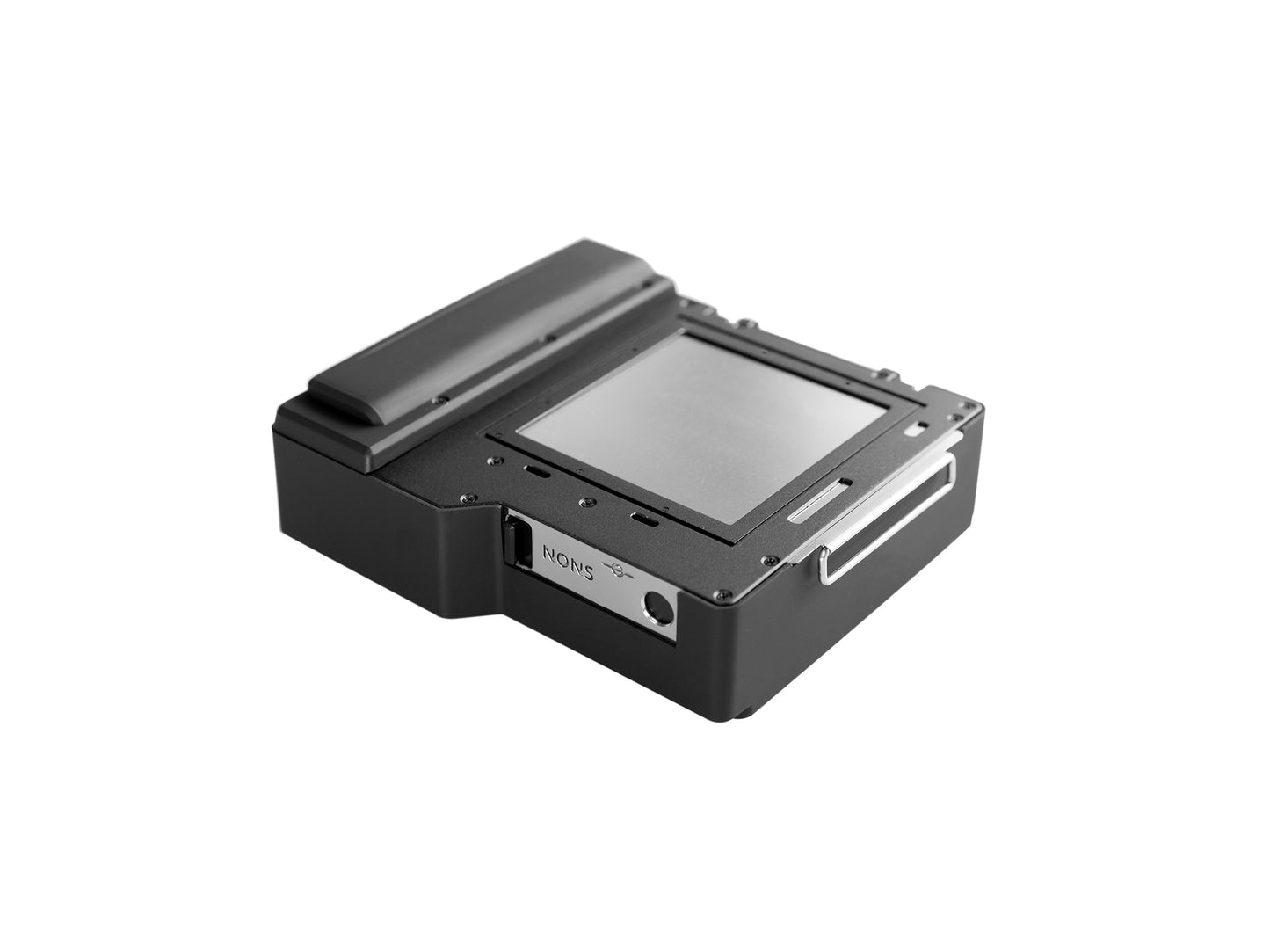

NONS Instant Back

• Mechanical dimension: 129 x 111 x 50 mm (width x height x depth)
• Weight: 330 g
• Power supply: 2040 mAh Li-ion battery.
• Input: DC 5V, 1A
• Film: Fujifilm instax square film, ISO 800
• Film size: 72 x 86 mm (width x height)
• Picture size: 62 x 62 mm (width x height)

Confirmed available models:

• 500C, 500CM
• 501C, 501CM
• 503CX, 503CXi, 503CW
• 2000 FCM
• SWC, SWC/M, 903SWC
• PME5, PME51 Finder

Confirmed NOT available models:

• 200 series
• 500ELM, 553ELX
• Flexbody
• NC2 Prism Finder

Other models are not confirmed. We cannot guarantee the availability.

• NONS Instant Back - H1 (NIB-H1)
• Stainless Steel Dark Slide
  *The dark slide can only reduce light leak temporarily. When you want to remove the instant back with unexposed film inside from the camera body, firstly insert dark slide, take off the instant back and put it in a light tight cloth bag or box at once.
  *The dark slide is only available for the NIB-H1.
• USB Type-A to Type-C cable

1. Film pressure marks / roller lines / 'light leak'
Usually the vertical lines are caused by the rollers and are a normal part of the film development process. The chemicals in the film need time to disperse evenly, and this can result in temporary variations in contrast and color. These areas usually fade within an hour after the photo is ejected. However, this timeframe can be affected by ambient temperature – cooler conditions may cause the areas to take longer to disappear.
—

2. Battery charging
Please try to charge the product with a USB-A to USB-C cable same as the inbox cable. It works with 5W or 10W adapters or power bank. The power system of the product is not available for quick charge protocols such as QC or PD (usually works with USB-C to USB-C cable).

The indicator beside the charging port will be red when charging and turn green when charging complete. The product is not in charge status if the indicator did not light up.
—

3. Darkslide getting damaged
Please ensure to wind the camera only when the dark slide is not inserted in the working surface. The dark slide may get damaged if the gear is out of the gear slot during winding process.

A dented dark slide will be hard to use and may also lead to some light leak. We would recommend not using a dented dark slide to avoid light leak.
—

4. Hasselblad camera with side arm / grip - does the left-side ejection interfere?
The instant back ejects film from the left side. Whether it interferes depends on the specific distance and position of your external device.
—

5. Can it work with Bronica?
No, it is only compatible with the Hasselblad V system. Please refer to our compatiblity tab for the specific compatible models.
—

6. Can it work with Kiev 88?
No, it is not compatible with Kiev 88.
—

7. Battery durability
The built-in cell, provided by top-tier supplier, is designed to retain 80% of its rated capacity after 1000 full charging cycles. The instant back can take more than 100 photos on a single charge, ensuring reliable durability.

The battery is custom-designed and integrated into the product body. We do not recommend disassembling or replacing it yourself. After the warranty period ends, we will continue to offer battery replacement services.
—
